集成案例
本文档页面为集成商提供万里汇支付系统的 Java 集成参考案例，内容涵盖沙箱环境测试和上线流程，帮助集成商实现快速集成。
沙箱环境集成
注意：为了确保您获得最佳的集成体验，请务必按照以下步骤完成沙箱环境的配置。
步骤一：获取集成信息
联系万里汇技术支持以获取下列信息：
- 集成商 client-id
- 万里汇测试环境域名
- 万里汇测试环境公钥
步骤二：生成 RSA 密钥对
生成集成商公钥及私钥，将集成商公钥提供给万里汇技术支持进行配置。
注意：JAVA 语言需生成 PKCS8 格式秘钥，详见生成签名及加验签。
步骤三：提供支付链接
下单成功后，集成商需要将支付链接 actionForm.redirectUrl 提供给万里汇技术支持，以绑定测试账号并用于支付。
步骤四：提供通知地址
完成支付后，万里汇向集成商通知本次支付结果。集成商需要将通知地址 paymentNotifyUrl 提供给万里汇技术支持加入白名单，即可使用沙箱环境进行测试。进入线上环境则无需加入白名单。
代码示例
1. 加验签工具示例
copy
/**
* Alipay.com Inc. Copyright (c) 2004-2025 All Rights Reserved.
*/
import java.io.UnsupportedEncodingException;
import java.net.URLDecoder;
import java.net.URLEncoder;
import java.security.KeyFactory;
import java.security.PrivateKey;
import java.security.PublicKey;
import java.security.Signature;
import java.security.spec.PKCS8EncodedKeySpec;
import java.security.spec.X509EncodedKeySpec;
import java.time.OffsetDateTime;
import java.time.ZoneOffset;
import java.time.format.DateTimeFormatter;
import java.util.Base64;
/**
* 加验签工具，可直接使用
*/
public class SignAndVerifyTool {
private static final String RSA = "RSA";
private static final String SHA256_WITH_RSA = "SHA256withRSA";
private static final String DEFAULT_CHARSET = "UTF-8";
/**
* sign with request
* @param httpMethod http method
* @param uri your webhook endpoint, domain part excluded, sample: /amsin/api/v1/business/create
* @param clientId your clientId
* @param reqTimeStr
* @param reqBody
* @param merchantPrivateKey
* @return
* @throws Exception
*/
public static String sign(String httpMethod, String uri, String clientId, String reqTimeStr,
String reqBody, String merchantPrivateKey) throws Exception {
String reqContent = genSignContent(httpMethod, uri, clientId, reqTimeStr, reqBody);
return encode(signWithSHA256RSA(reqContent, merchantPrivateKey), DEFAULT_CHARSET);
}
/**
* verify webhook signature
*
* @param requestUri your webhook endpoint, domain part excluded, sample: /payNotify
* @param httpMethod http method
* @param clientId your clientId, sample: 5J5YEX4XXXXXXX
* @param requestTime requestTime from http header, sample: 2025-08-04T01:01:01Z
* @param signature signature from http header, sample: algorithm=RSA256,keyVersion=1,signature=xxx
* @param notifyBody notify body
* @param alipayPublicKey alipay public key
*
* @return
* @throws Exception
*/
public static boolean checkSignature(String requestUri, String httpMethod, String clientId,
String requestTime, String signature, String notifyBody,
String alipayPublicKey) throws Exception {
String realSignature = "";
// get valid part from raw signature
if (signature == null || signature.isEmpty()) {
throw new RuntimeException("empty notify signature");
} else {
String[] parts = signature.split("signature=");
if (parts.length > 1) {
realSignature = parts[1];
}
}
try {
// verify signature
return verify(httpMethod, requestUri, clientId, requestTime, notifyBody, realSignature,
alipayPublicKey);
} catch (Exception e) {
throw new Exception(e);
}
}
/**
* URL encode
* @param originalStr
* @param characterEncoding
* @return
* @throws UnsupportedEncodingException
*/
private static String encode(String originalStr, String characterEncoding)
throws UnsupportedEncodingException {
return URLEncoder.encode(originalStr, characterEncoding);
}
/**
* Generate base64 encoded signature using the sender's private key
*
* @param reqContent: the original content to be signed by the sender
* @param strPrivateKey: the private key which should be base64 encoded
* @return
* @throws Exception
*/
private static String signWithSHA256RSA(String reqContent, String strPrivateKey)
throws Exception {
Signature privateSignature = Signature.getInstance(SHA256_WITH_RSA);
privateSignature.initSign(getPrivateKeyFromBase64String(strPrivateKey));
privateSignature.update(reqContent.getBytes(DEFAULT_CHARSET));
byte[] bytes = privateSignature.sign();
return Base64.getEncoder().encodeToString(bytes);
}
/**
*
* @param privateKeyString
* @return
* @throws Exception
*/
private static PrivateKey getPrivateKeyFromBase64String(String privateKeyString)
throws Exception {
byte[] b1 = Base64.getDecoder().decode(privateKeyString);
PKCS8EncodedKeySpec spec = new PKCS8EncodedKeySpec(b1);
KeyFactory kf = KeyFactory.getInstance(RSA);
return kf.generatePrivate(spec);
}
public static boolean verify(String httpMethod, String path, String clientId,
String rspTimeStr, String rspBody, String signature,
String alipayPublicKey) throws Exception {
String rspContent = genSignContent(httpMethod, path, clientId, rspTimeStr, rspBody);
return verifySignatureWithSHA256RSA(rspContent, decode(signature, DEFAULT_CHARSET),
alipayPublicKey);
}
public static String genSignContent(String httpMethod, String path, String clientId,
String timeString, String content) {
String payload = httpMethod + " " + path + "\n" + clientId + "." + timeString + "."
+ content;
return payload;
}
/**
* Verify if the received signature is correctly generated with the sender's public key
*
* @param rspContent: the original content signed by the sender and to be verified by the receiver.
* @param signature: the signature generated by the sender
* @param strPk: the public key string-base64 encoded
* @return
* @throws Exception
*/
private static boolean verifySignatureWithSHA256RSA(String rspContent, String signature,
String strPk) throws Exception {
PublicKey publicKey = getPublicKeyFromBase64String(strPk);
Signature publicSignature = Signature.getInstance(SHA256_WITH_RSA);
publicSignature.initVerify(publicKey);
publicSignature.update(rspContent.getBytes(DEFAULT_CHARSET));
byte[] signatureBytes = Base64.getDecoder().decode(signature);
return publicSignature.verify(signatureBytes);
}
/**
*
* @param publicKeyString
* @return
*/
private static PublicKey getPublicKeyFromBase64String(String publicKeyString) throws Exception {
byte[] b1 = Base64.getDecoder().decode(publicKeyString);
X509EncodedKeySpec X509publicKey = new X509EncodedKeySpec(b1);
KeyFactory kf = KeyFactory.getInstance(RSA);
return kf.generatePublic(X509publicKey);
}
/**
* 获取当前时间的规范模式 JDK 1.8
* ISO 8601标准时间
*/
public static String getRequestTimeWithISO8601() {
OffsetDateTime dateTime = OffsetDateTime.now(ZoneOffset.ofHours(8));
DateTimeFormatter formatter = DateTimeFormatter.ofPattern("yyyy-MM-dd'T'HH:mm:ssXXX");
return dateTime.format(formatter);
}
/**
* URL decode
* @param originalStr
* @param characterEncoding
* @return
* @throws UnsupportedEncodingException
*/
private static String decode(String originalStr, String characterEncoding)
throws UnsupportedEncodingException {
return URLDecoder.decode(originalStr, characterEncoding);
}
}2. 下单步骤示例
copy
/**
* Alipay.com Inc. Copyright (c) 2004-2025 All Rights Reserved.
*/
import java.io.BufferedReader;
import java.io.BufferedWriter;
import java.io.IOException;
import java.io.InputStreamReader;
import java.io.OutputStream;
import java.io.OutputStreamWriter;
import java.net.HttpURLConnection;
import java.net.URL;
import java.nio.charset.StandardCharsets;
import java.util.Arrays;
import java.util.HashMap;
import java.util.Map;
import com.alibaba.fastjson.JSONObject;
import com.google.gson.Gson;
/**
* 示例代码
*/
public class CheckOutPayTest {
/**
* name and value separator
*/
private static final String NAME_VALUE_SEPARATOR = "=";
/**
* comma
*/
private static final String COMMA = ",";
/**
* algorithm
*/
private static final String ALGORITHM = "algorithm";
/**
* signature
*/
private static final String SIGNATURE = "signature";
/**
* keyVersion
*/
private static final String KEY_VERSION = "keyVersion";
/**
* RSA256
*/
private static final String RSA_256 = "RSA256";
//商户 私钥
private static final String merchantPrivateKey = "MII********************ukzv";
//ipay 公钥
private static final String alipayPublicKey = "MII*****AQAB";
public static void main(String[] args) throws Exception {
//创单及验签
createOrderAndVerify();
//支付结果通知验签
// verifyWorldFirstNotify();
}
/**
* 创建万里汇订单并验签
* @throws Exception
*/
public static void createOrderAndVerify() throws Exception {
//测试环境域名
String domain = "https://open-sitprod-qk.alipay.com";
//POST请求
String httpMethod = "POST";
//创单uri
String urlEndPoint = "/amsin/api/v1/business/create";
//集成商client-Id，万里汇提供
String clientId = "5J5*******540";
//ISO 8601标准 请求时间
String requestTime = SignAndVerifyTool.getRequestTimeWithISO8601();
//参考下单API创建订单
WorldFirstOrder worldFirstOrder = createWorldFirstOrder(requestTime);
Gson gson = new Gson();
//requestBody加签和发送请求时需一致，以便万里汇验签
String requestBody = gson.toJson(worldFirstOrder);
//请求数据加签
String signature = SignAndVerifyTool.sign(httpMethod, urlEndPoint, clientId, requestTime,
requestBody, merchantPrivateKey);
//构建签名信息
String signatureHeaderPayload = buildSignatureHeaderPayload(signature);
//构建请求头
Map<String, String> headers = buildHeaders(clientId, requestTime, signatureHeaderPayload);
//构建请求url
String url = domain + urlEndPoint;
//发送创单请求
Map<String, String> response = sendPost(url, requestBody, headers);
//响应签名 来源headers.signature
String responseSignature = response.get("signature");
//响应时间 来源headers.response-time
String responseTime = response.get("responseTime");
//响应结果,原始报文
String responseResult = response.get("result");
System.out.println(responseResult);
//验签
boolean checkResult = SignAndVerifyTool.checkSignature(urlEndPoint, httpMethod, clientId,
responseTime, responseSignature, responseResult, alipayPublicKey);
System.out.println("对万里汇创单验签结果:" + checkResult);
}
/**
*
* @param url request url。 sample： https://open-sitprod-qk.alipay.com/amsin/api/v1/business/create
* @param param requestBody
* @param header http header
* @return
* @throws IOException
*/
public static Map<String, String> sendPost(String url, String param, Map<String, String> header)
throws IOException {
URL realUrl = new URL(url);
HttpURLConnection conn = (HttpURLConnection) realUrl.openConnection();
conn.setConnectTimeout(5000);
conn.setReadTimeout(15000);
conn.setRequestMethod("POST");
conn.setDoOutput(true);
conn.setDoInput(true);
conn.setRequestProperty("Content-Type", "application/json; charset=utf-8");
if (header != null) {
for (Map.Entry<String, String> entry : header.entrySet()) {
conn.setRequestProperty(entry.getKey(), entry.getValue());
}
}
conn.connect();
try (OutputStream out = conn.getOutputStream();
BufferedWriter writer = new BufferedWriter(new OutputStreamWriter(out,
StandardCharsets.UTF_8))) {
writer.write(param);
writer.flush();
}
Map<String, String> response = new HashMap<>();
response.put("signature", conn.getHeaderField("signature"));
response.put("responseTime", conn.getHeaderField("response-time"));
try (BufferedReader reader = new BufferedReader(new InputStreamReader(
conn.getInputStream(), StandardCharsets.UTF_8))) {
StringBuilder sb = new StringBuilder();
String line;
while ((line = reader.readLine()) != null) {
sb.append(line);
}
response.put("result", sb.toString());
}
return response;
}
/**
* build http headers
* @param clientId
* @param time 和加签的请求时间一致
* @param signatureHeaderPayload 签名信息
* @return
*/
public static Map<String, String> buildHeaders(String clientId, String time,
String signatureHeaderPayload) {
Map<String, String> header = new HashMap<>();
header.put("client-id", clientId);
header.put("request-time", time); //响应通知使用 response-time 参考：https://developers.worldfirst.com.cn/docs/alipay-worldfirst/cashier_payment_zh/notify_payment
header.put("signature", signatureHeaderPayload);
return header;
}
/**
*
* @param signature
* @return
*/
public static String buildSignatureHeaderPayload(String signature) {
return new StringBuilder(ALGORITHM).append(NAME_VALUE_SEPARATOR).append(RSA_256)
.append(COMMA).append(KEY_VERSION).append(NAME_VALUE_SEPARATOR).append("1")
.append(COMMA).append(SIGNATURE).append(NAME_VALUE_SEPARATOR).append(signature)
.toString();
}
/**
* 商户模拟接收万里汇支付结果通知的验签处理
* 通知请求body: {"notifyType":"PAYMENT_RESULT","payToAmount":{"currency":"USD","value":"5000"},***********"result":{"resultCode":"SUCCESS","resultMessage":"success.","resultStatus":"S"}}
* 通知请求头headers:"headers":{"Content-Type":"application/json","client-id":"5J5*******0540","request-time":"2025-******8Z","signature":"algorithm=RSA256,keyVersion=1,signature=BTBbm7*********%3D%3D"
*/
public static void verifyWorldFirstNotify() throws Exception {
//请求方式
String httpMethod = "POST";
//集成商通知uri
String urlEndPoint = "/api/xx/xxNotify";
//集成商client-id
String clientId = "5J5*******540";
//商户通知时间 来源:headers.request-time
String timeString = "request-time";
//支付结果通知 来源:原始报文requestBody
String requestBody = "requestBody";
//请求签名 来源:headers.signature
String signature = "signature";
//对万里汇支付结果通知验签
boolean verifyResult = SignAndVerifyTool.checkSignature(urlEndPoint, httpMethod, clientId,
timeString, signature, requestBody, alipayPublicKey);
System.out.println("验证支付结果通知:" + verifyResult);
//在收到万里汇的支付结果后，集成商需要向万里汇发送响应信息，以确认信息已收到
//模拟响应
//响应body
JSONObject successResponse = new JSONObject();
JSONObject result = new JSONObject();
result.put("resultStatus","S");
result.put("resultCode","SUCCESS");
result.put("resultMessage","success");
successResponse.put("result",result);
String responseBody = successResponse.toString();
//ISO 8601标准 时间
String responseTime = SignAndVerifyTool.getRequestTimeWithISO8601();
//响应数据加签
String responseSignature = SignAndVerifyTool.sign(httpMethod, urlEndPoint, clientId, responseTime,
responseBody, merchantPrivateKey);
//构建签名信息
String signatureHeaderPayload = buildSignatureHeaderPayload(signature);
//构建响应头
Map<String, String> headers = buildHeaders(clientId, responseTime, signatureHeaderPayload);
//成功响应
}
}报文示例
1. 下单
- 请求头
copy
"headers": {
"client-id": "5J5YE*****00540",
"content-type": "application/json; charset=utf-8",
"request-time": "2025-11-19T16:04:18+08:00",
"signature": "algorithm=RSA256,keyVersion=1,signature=vtZGnCziR75iXGvuRbi8o***********uUjuBrirG6m3SpIWYRHzKgfIog==",
***
***
}- 请求体
copy
{
"orderGroup": {
"orderGroupId": "orderGroupId",
"orderGroupDescription": "orderDescription",
"orderBuyer": {
"referenceBuyerId": "BuyerId" //买家在集成商平台的唯一USERID，买家的万里汇账号都会绑定在此ID下
},
"orders": [{
"referenceOrderId": "referenceOrderId",
"transactionTime": "2025-11-19T16:04:18+08:00",
"orderDescription": "orderDescription",
"orderTotalAmount": {
"currency": "USD",
"value": 10000
}
}]
},
"payToDetails": [{
"payToRequestId": "payToRequestId",
"referenceOrderId": "referenceOrderId",
"payToAmount": {
"currency": "USD",
"value": 10000
},
"payToMethod": {
"paymentMethodType": "WALLET_WF",
"paymentMethodDataType": "PAYMENT_ACCOUNT_NO"
},
"paymentNotifyUrl": "http://test.com/api/***/callback" //支付完成通知地址
}],
"paymentRedirectUrl": "http://www.taobao.com", //支付完成返回商户地址
"industryProductCode": "ONLINE_DIRECT_PAY"
}- 响应头
copy
"headers": {
"Content-Type": "application/json",
"client-id": "5J5YE*****00540",
"response-time": "2025-11-19T08:04:20Z",
"signature": "algorithm=RSA256,keyVersion=1,signature=p9GFN2B/E2cdUn2l4*************5zHD3Zvx41fjFlTocQ==",
}- 响应体
copy
{
"actionForm": "{\"actionFormType\":\"RedirectActionForm\",\"method\":\"GET\",\"redirectUrl\":\"https://open-icashierprod-qk-sim.alipay.com/m/business/cashier/checkout?partnerId=2188*****8234&cashierOrderId=11190160956*****9531a83071\"}",
"payToSummaries": [{
"payToAmount": {
"currency": "USD",
"value": "10000"
},
"payToCreateTime": "2025-11-19T00:04:19-08:00",
"payToId": "202511191540108001**********3786",
"payToRequestId": "payToRequestId"
}],
"result": {
"resultCode": "SUCCESS",
"resultMessage": "success.",
"resultStatus": "S"
}
}2. 支付结果通知
- 万里汇 ---> 集成商
- 请求头
copy
"headers": {
"Content-Type": "application/json",
"client-id": "5J5YE******00540",
"request-time": "2025-11-19T08:37:15Z",
"signature": "algorithm=RSA256,keyVersion=1,signature=gMKfeW8JKHKOLq************OT9/r7UoxxENP9ajWQ=="
}- 请求体
copy
{
"notifyType": "PAYMENT_RESULT",
"payToAmount": {
"currency": "USD",
"value": "10000"
},
"payToId": "202511191540108001*********89313",
"payToRequestId": "payToRequestId",
"paymentAmount": {
"currency": "USD",
"value": "10000"
},
"paymentDetailSummaries": [{
"accountId": "2188*****54311",
"customerName": {
"fullName": "公***f"
},
"extendInfo": "{\"chargeAmount\":\"{\\\"currency\\\":\\\"USD\\\",\\\"value\\\":\\\"5\\\"}\"}",
"paymentAmount": {
"currency": "USD",
"value": "5"
},
"paymentMethodType": "WALLET_WF"
}, {
"accountId": "2188*****54311",
"customerName": {
"fullName": "公***f"
},
"extendInfo": "{}",
"paymentAmount": {
"currency": "USD",
"value": "10000"
},
"paymentMethodType": "WALLET_WF"
}],
"paymentId": "2025111985*********518985",
"paymentRequestId": "ec7553db-****-****-****-30decc899da7",
"paymentTime": "2025-11-19T08:37:14Z",
"result": {
"resultCode": "SUCCESS",
"resultMessage": "success.",
"resultStatus": "S"
}
}- 集成商 ---> 万里汇
- 响应头
copy
"headers": {
"client-id": "5J5Y92*****01401",
"content-type": "application/json; charset=UTF-8",
"response-time": "2025-11-19T00:18:00+08:00",
"signature": "algorithm=RSA256,keyVersion=1,signature=RqPxqiPdaQGc**********ZNNtbzl8T4FssQ==",
***,
***
}- 响应体
copy
{
"result":{
"resultCode":"SUCCESS",
"resultMessage":"success.",
"resultStatus":"S"
}
}3. 退款
- 请求头
copy
"headers": {
"client-id": "5J5Y9******4234",
"content-type": "application/json;charset=UTF-8",
"request-time": "2025-11-19T17:54:32.354+08:00",
"signature": "algorithm=RSA256,keyVersion=1,signature=XvFE0I**************lRog2GXazgeQ==",
}- 请求体
copy
{
"payToId": "202510241540108001************9867",
"refundRequestId": "refundRequestId",
"refundRequestTime": "2025-11-19T17:54:32.354+08:00",
"refundToDetails": [{
"refundAmount": {
"currency": "USD",
"value": 20000
},
"refundMethod": {
"paymentMethodType": "WALLET_WF"
},
"refundToAmount": {
"currency": "USD",
"value": 20000
}
}]
}- 响应头
copy
"headers": {
"Content-Type": "application/json",
"client-id": "5J5Y9*******4234",
"response-time": "2025-11-19T09:54:33Z",
"signature": "algorithm=RSA256,keyVersion=1,signature=AheZs1bbbvkUzW**************YDvD93eemG0A==",
}- 响应体
copy
{
"payToId": "202510241540108001*******529867",
"refundRequestId": "RD2534382",
"refundToDetails": [{
"refundAmount": {
"currency": "USD",
"value": "20000"
},
"refundMethod": {
"paymentMethodType": "WALLET_WF"
},
"refundToAmount": {
"currency": "USD",
"value": "20000"
}
}],
"result": {
"resultCode": "SUCCESS",
"resultMessage": "success.",
"resultStatus": "S"
}
}上线流程
在完成沙箱环境测试后，集成商可联系万里汇技术支持开始上线流程，包括商户集成配置发布及签约流程。
步骤一：生成新的密钥对
集成商需生成线上环境密钥，并将公钥提供给万里汇技术支持进行配置。
步骤二：配置账号信息
如选择结算至万里汇 B2B 账户，集成商需将万里汇收款账号及账号 MID 提供给万里汇技术支持进行配置。

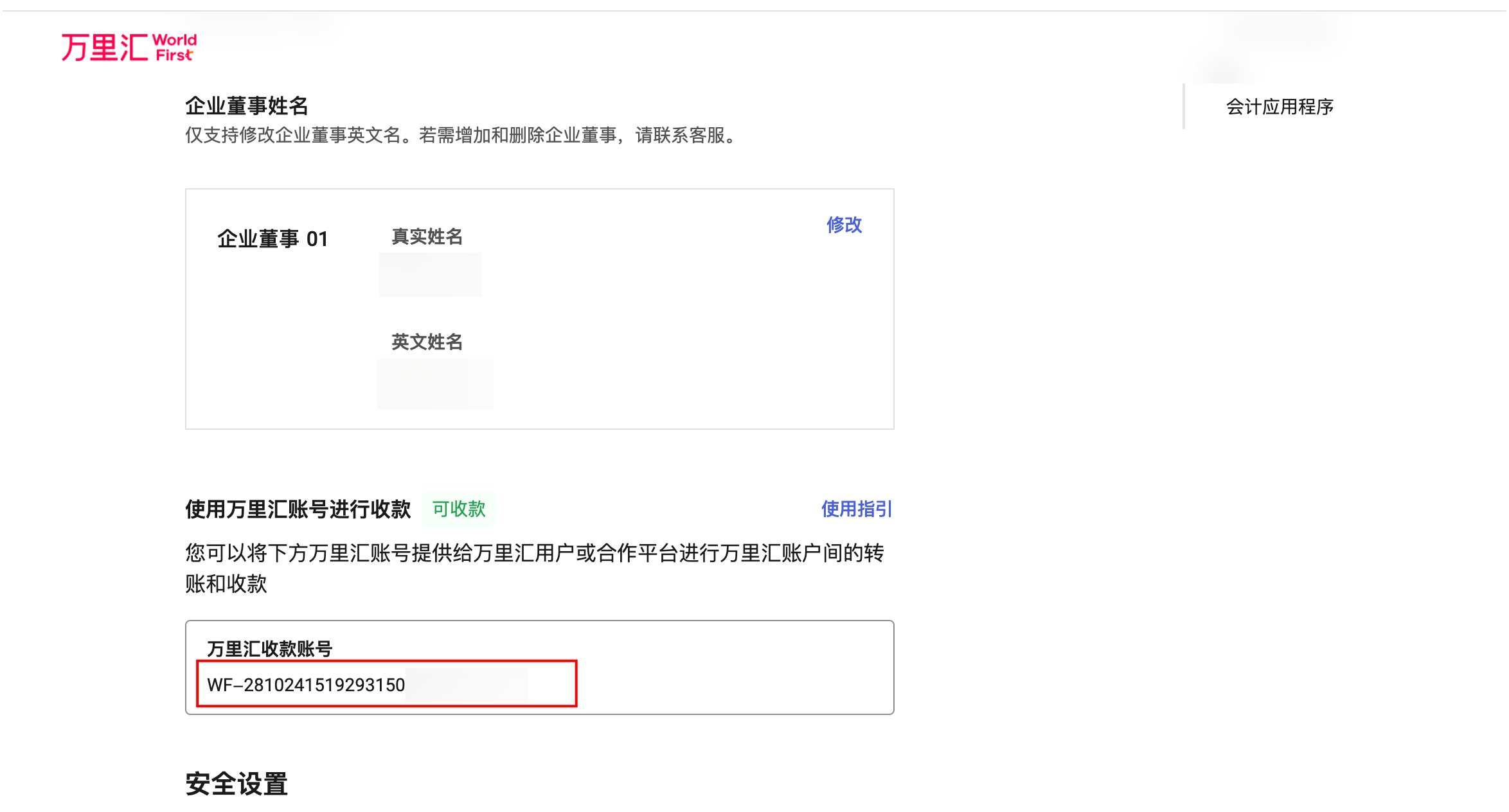

操作方法：登录万里汇账户，点击右上角账户名，进入【我的账户】后下拉，即可查看个人的万里汇收款账号（以 WF 开头的账号）。
步骤三：获取集成信息
向万里汇技术支持获取下列信息：
- 万里汇线上环境公钥
- 万里汇线上环境域名
- client-id
注意：请确保获取的 client-id 与沙箱环境一致。
步骤四：完成接入并开始线上验收
联系万里汇技术支持以绑定线上付款账号，并支付 0.01 元 。待万里汇技术支持完成配置发布和签约流程，集成商即可开始线上验收。若双方验收无误则完成接入工作。
